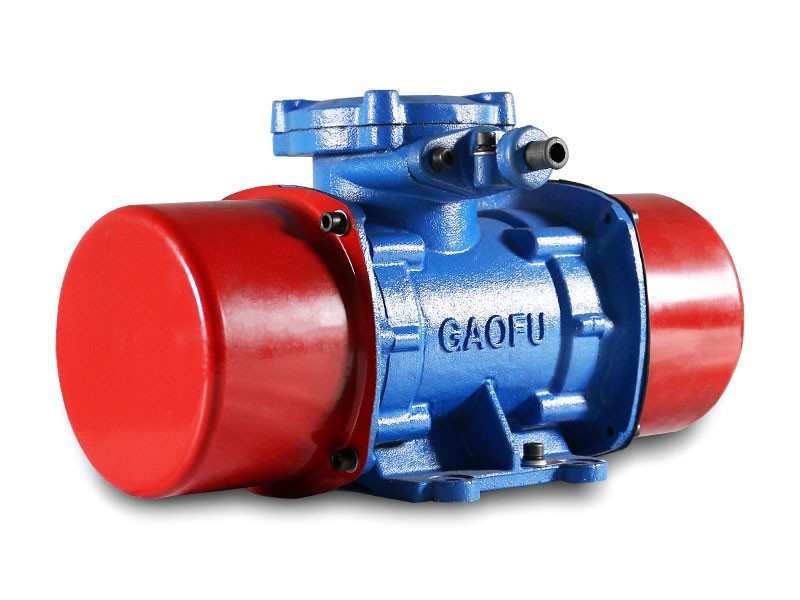

YZS振動電機

YZS振動電機

適用設備:直線振動篩直排篩、脫水篩、概率篩、給料機、振動篩分設備、振動輸送機、振動給料機、振動放礦機、振動干燥設備、振動落砂機、振實臺、料倉振動防閉塞裝置等各種振動機械設備理想的動力源和激振源。

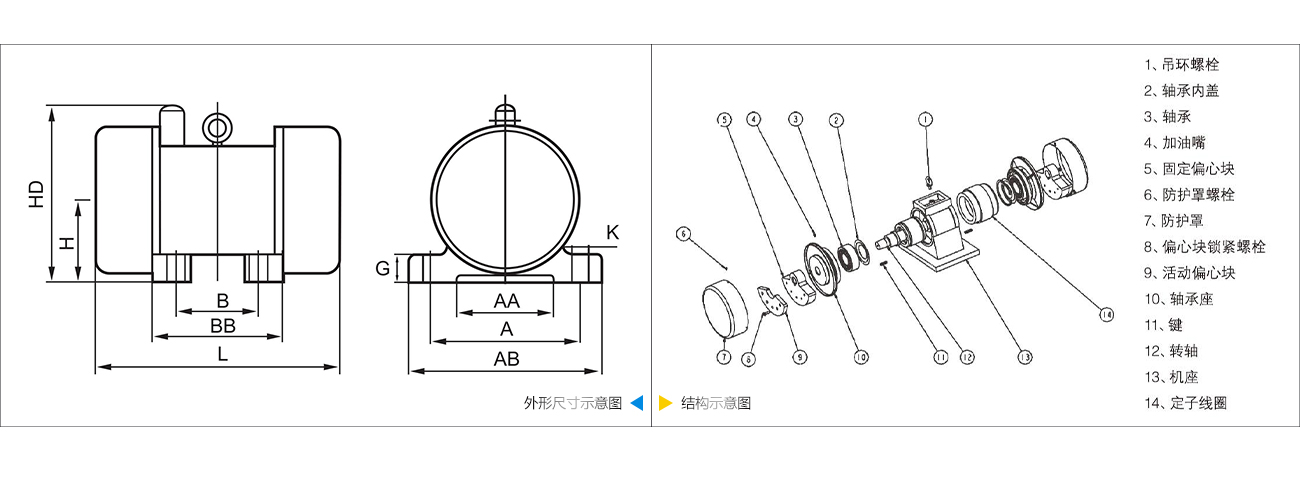

結構及工作原理

振動電機由特制電機外加激振重塊組成。當電機通電旋轉時,激振塊產生激 振力,通過電機底腳或法蘭盤傳遞縱橫振動機械。

特制電機由特制定子線包和轉子軸組成,能承受高頻振動;立式振動電機,采用兩塊偏心塊作為激振塊,兩軸端各—塊,上軸端為固定偏心塊,下軸端為可調偏心塊。在上下偏心塊的端部各裝有一組配重塊,通過調節配重塊的數量,可以分級調節振動電機的激振力;臥式振動電機采用四塊扇形偏心塊作激振塊,調節同軸端兩塊偏心塊的夾角,可以從零至最大調節振動電機的激振力。

技術參數

規格型號額定激振力(kN)額定功率(kW)重量轉速(r.p.m)安裝尺寸外形尺寸
ABKGABBBHHDL
YZS-1.5-21.50.1213300013080121917011880200245
YZS-2.5-22.50.221313080121917011880200245
YZS-3-230.251815090142118512490220270
YZS-5-250.371915090142118512490220270
YZS-10-2100.7530.51801101827225155112238330
YZS-15-2151.1472201402232272190125265385
YZS-20-2201.5912601502642344234140320452
YZS-30-2302.21253101703357400270170365505
YZS-1.0-410.0913150013080121917011880200245
YZS-1.5-41.50.121313080121917011880200245
YZS-3-430.182015090142118512490220270
YZS-5-450.25321801101827225155112238335
YZS-10-4100.55502201402232272190125265385
YZS-15-4150.75922601502642344234140320452
YZS-20-4201.1932601502642344234140320452
YZS-30-4301.51173101703357400270170365505
YZS-50-4502.22133502203952450313200425600
YZS-75-4753.73483802504567480350220465670
YZS-100-41006.34324401404565530435240520750
YZS-3-630.253510001801101827225155112238335
YZS-5-650.37512201402232272190125265385
YZS-10-6100.75982601502642344234140320452
YZS-15-6151.11293101703357400270170365505
YZS-20-6201.51303101703357400270170365505
YZS-30-6302.22353502203952450313200425600
YZS-50-6503.73503802504567480350220465670
YZS-75-6755.54354402805247570410240500730
YZS-100-61007.5
4401404565570420260580850
YZS-10-8100.751437503101703357400270170365505
YZS-20-8201.52423502203952450313200425600
YZS-30-8302.23543802504567480350220465670
YZS-50-8503.74364402805247570410240500730
YZS-75-8755.5
4401404565570420260580850
